Building a standing desk with a charging drawer and cable tray
Topics: DIY

This standing desk features a drawer for charging electronics, a cable tray for managing cables, Blum drawer sliders, backlights, outlets on the sides, and a hidden desk-height controller.

Hardware

The lumber cutlist can be found at the bottom of this post.

Build

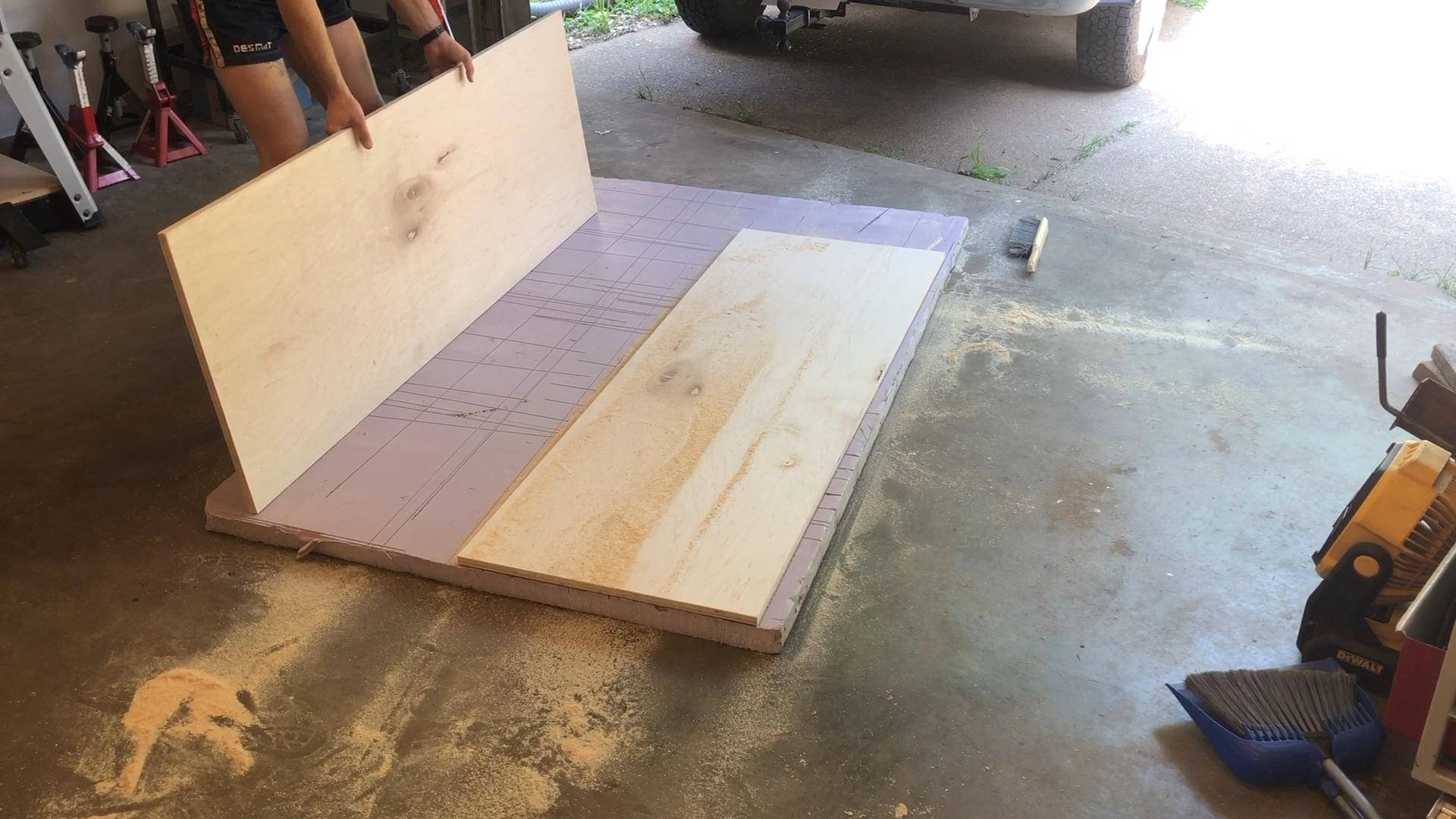

I used 1 sheet of 1/2″ and 1 sheet of 3/4″ maple plywood.

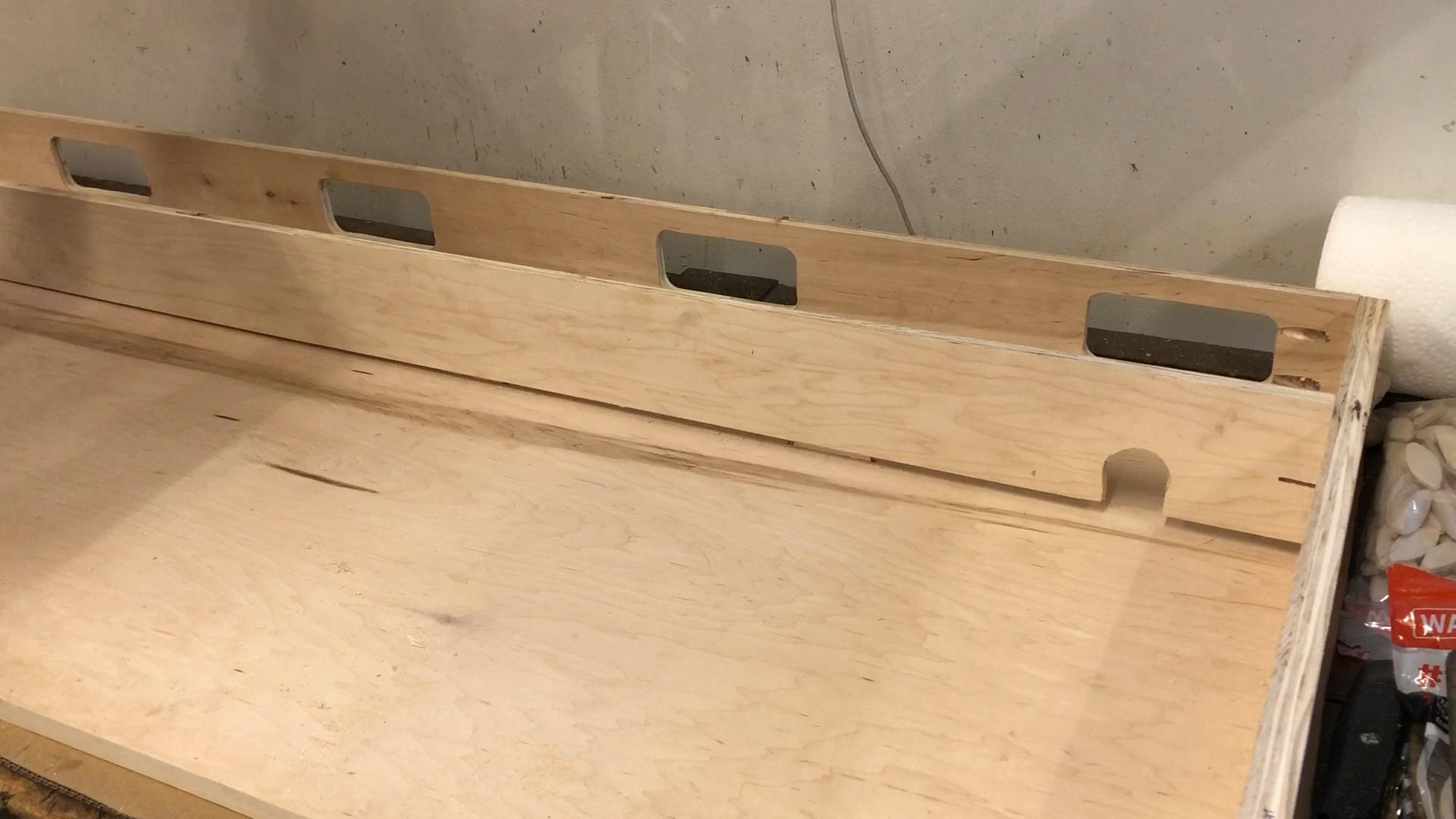

Biscuits and pocket screws were used for assembly. Below, you can see the partition for the cable tray being added.

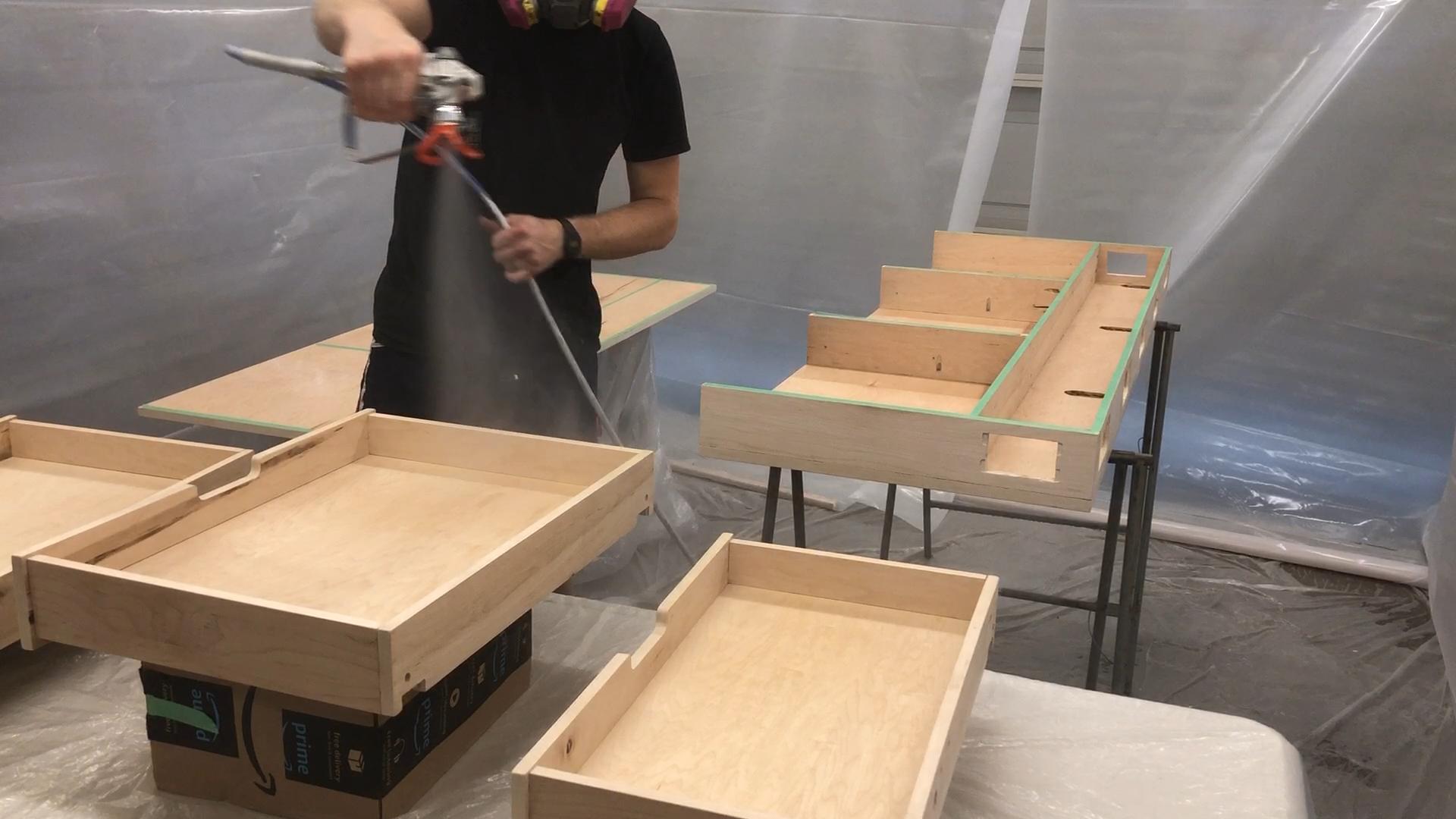

I used water-based polyurethane to finish the maple.

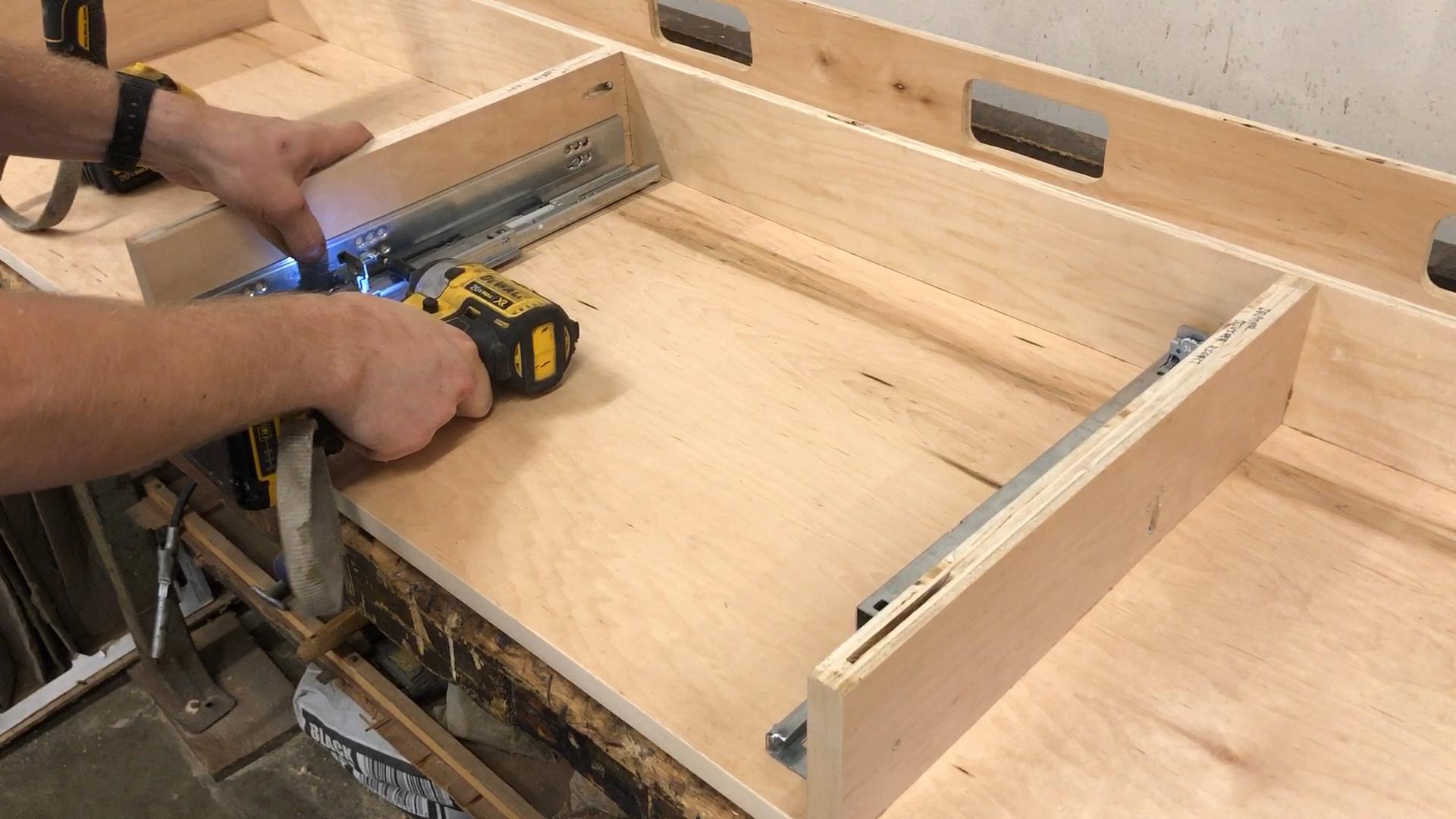

Installing Blum Tandem drawer slides.

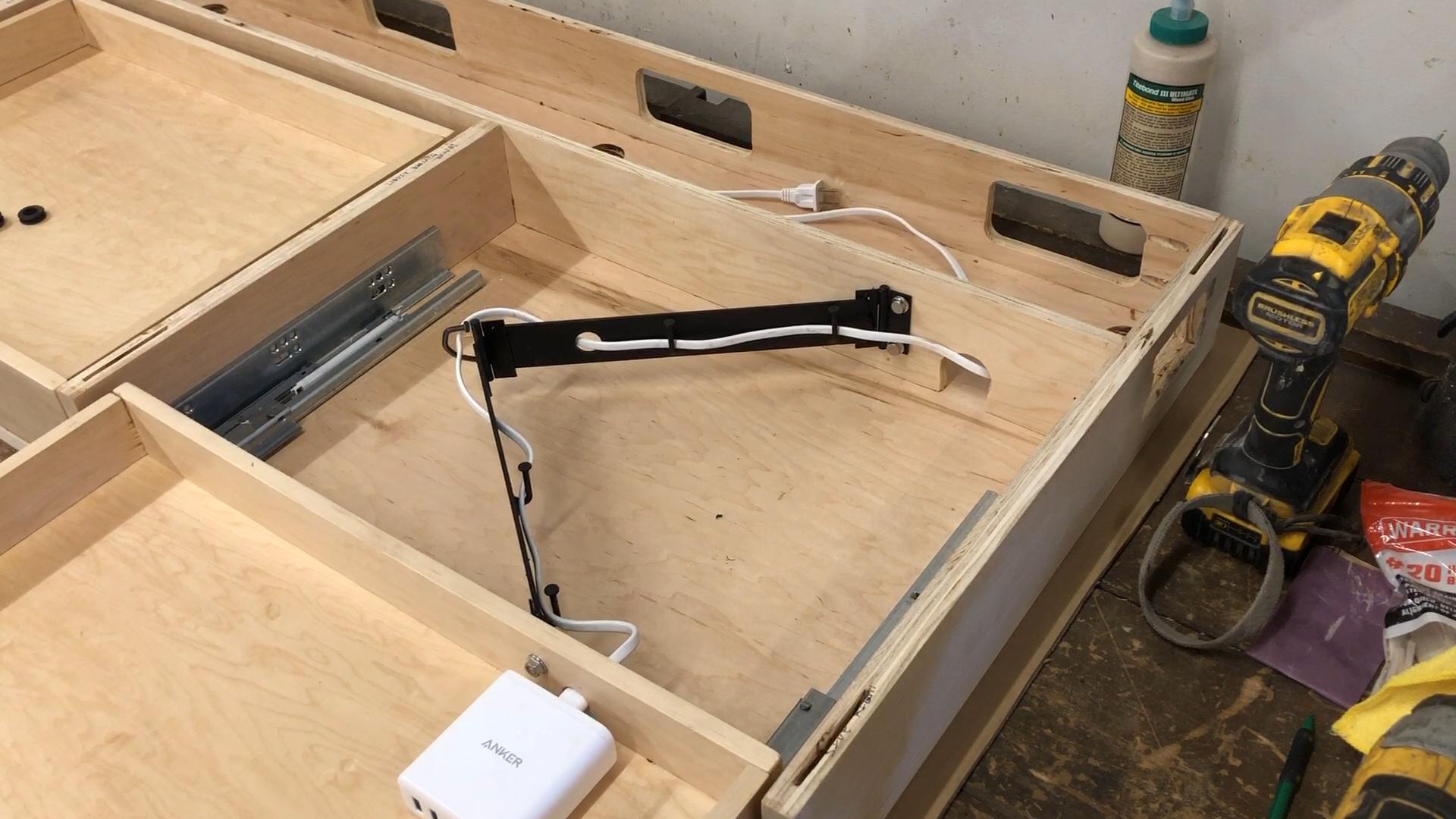

A custom cable management arm holds cables for a USB charge, the standing desk height controller, and LED backlight.

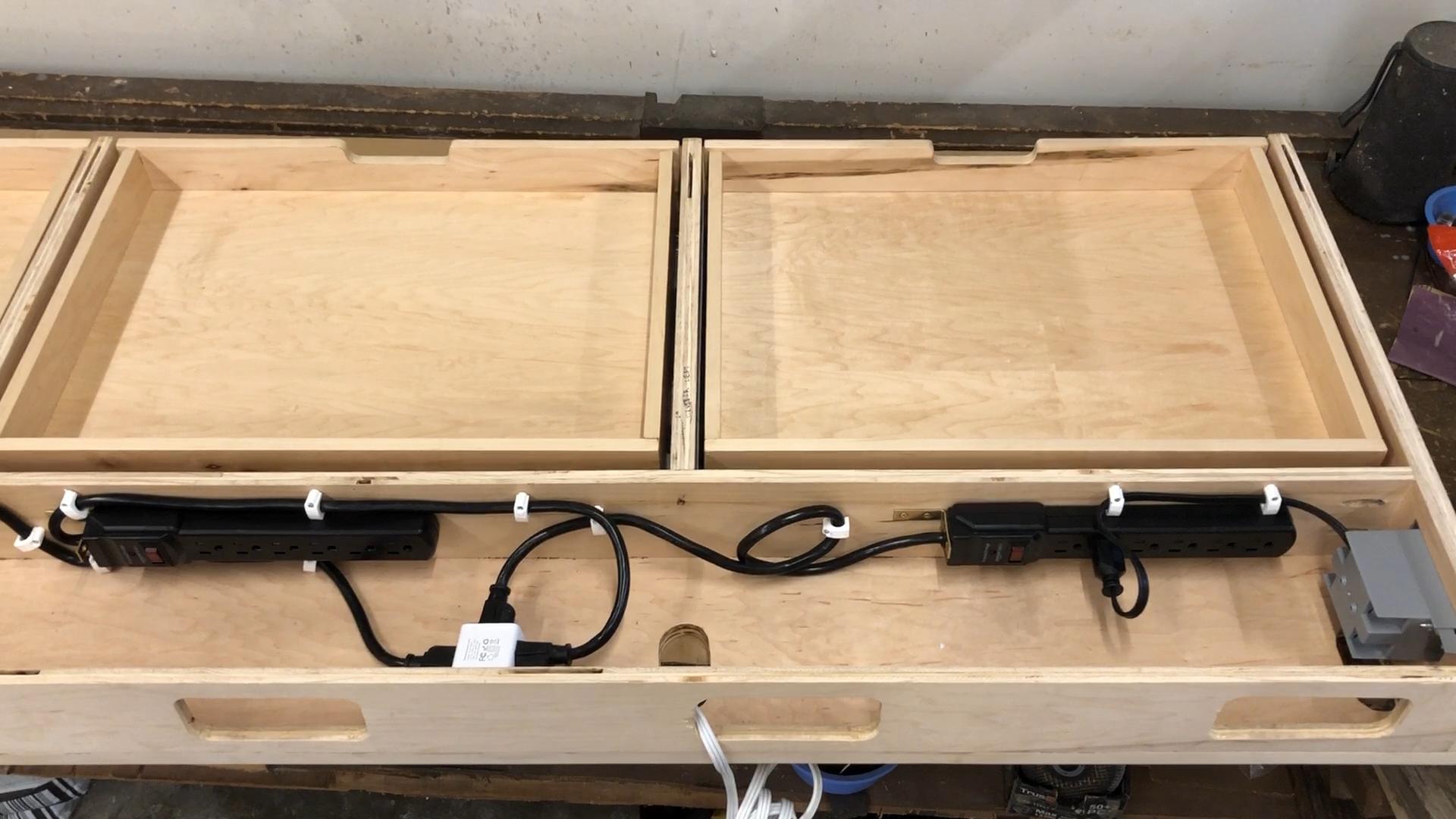

Below, you can see the cable tray which holds 3 surge protectors. I was considering a large 5 foot power strip, but the smaller ones are easier to replace in the future.

You can fit your hands in the cable openings in the back, so replacements are possible.

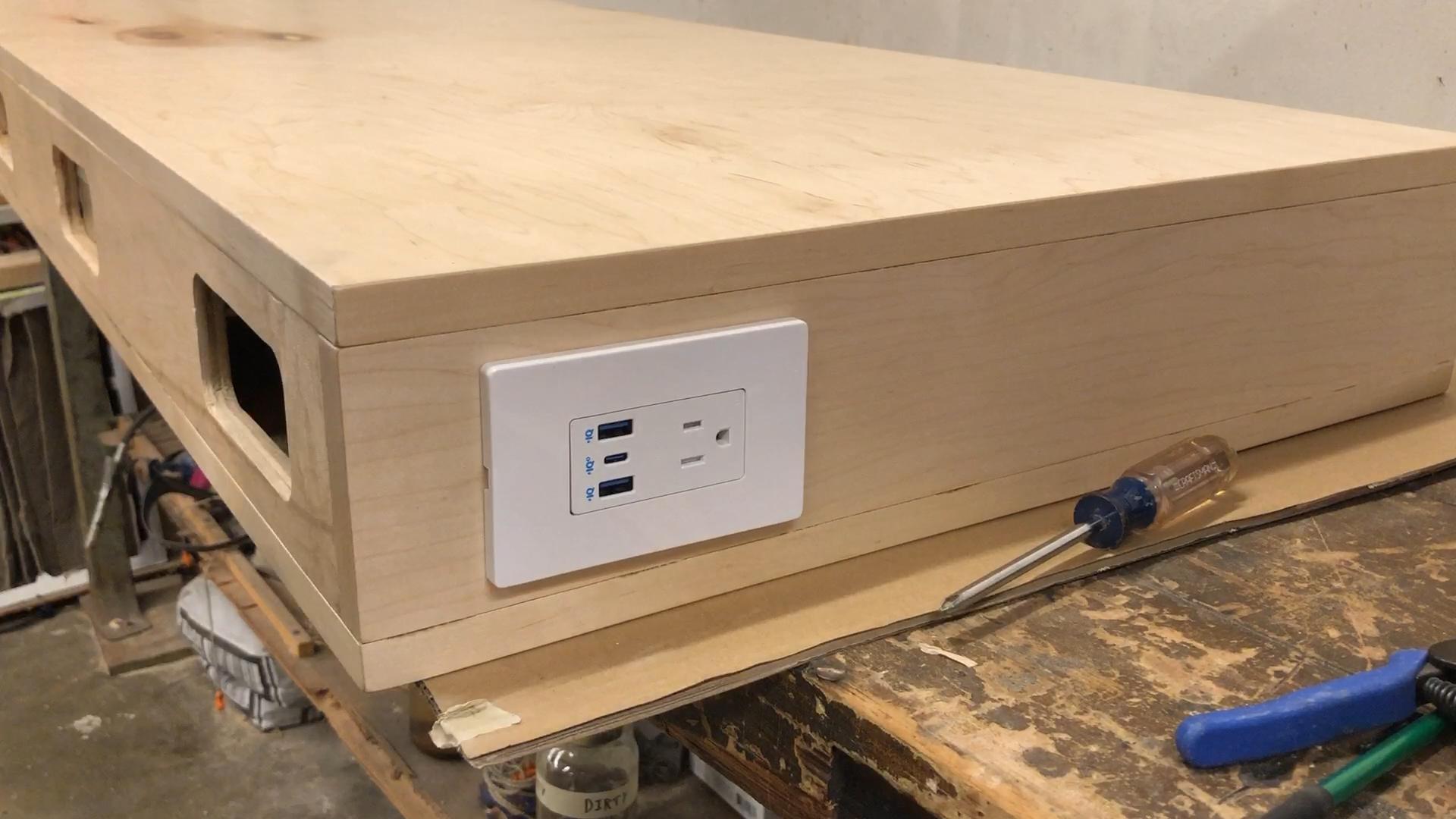

Both sides of the desk have a USB/AC outlet from Anker.

For temporarily connected things, I use the outlets on the sides. For permanently connected things, I use the surge protectors in the cable tray.

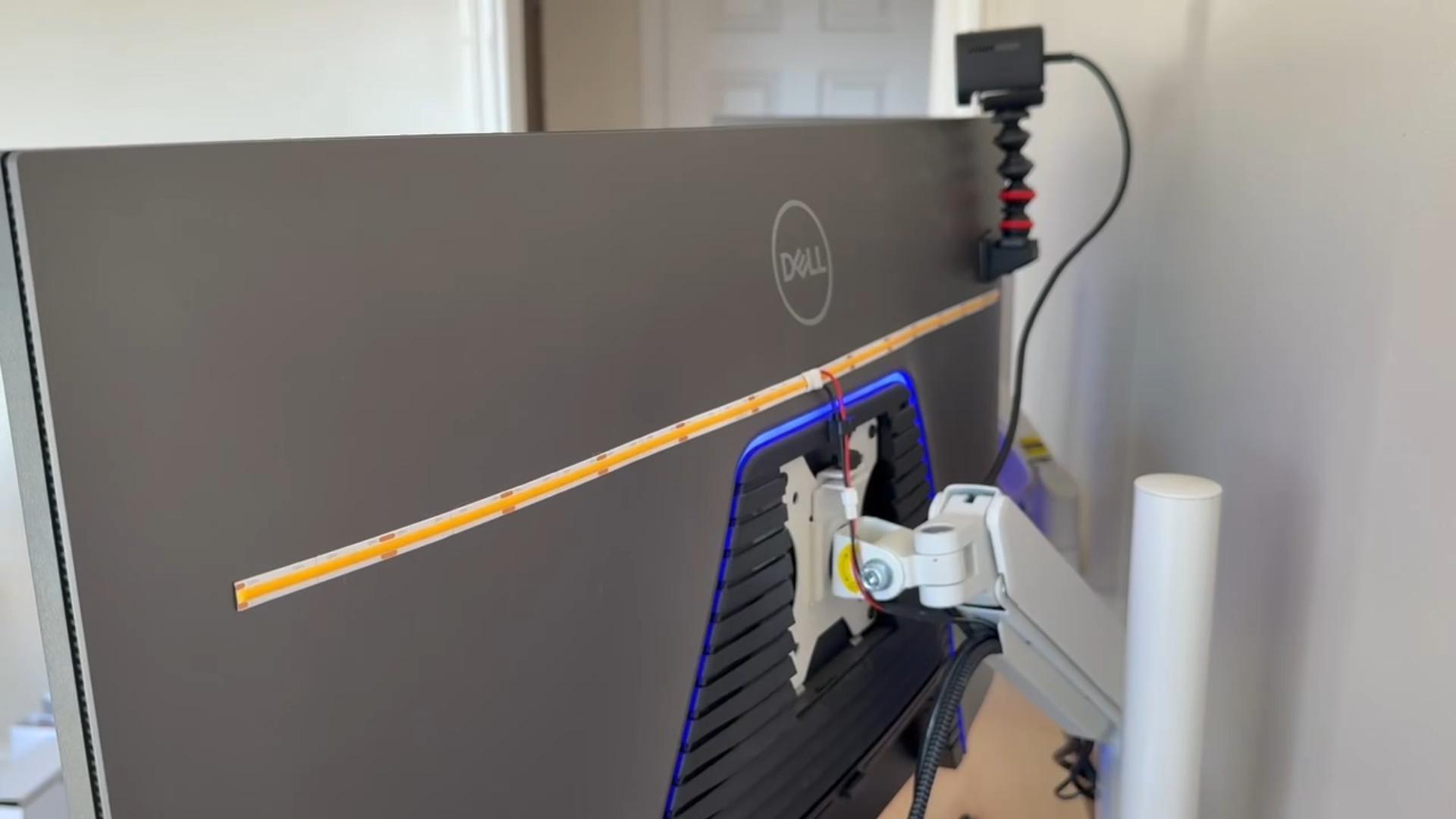

I added 3000K LED strips for a backlight. These are controlled by a dimmer in the righthand drawer.

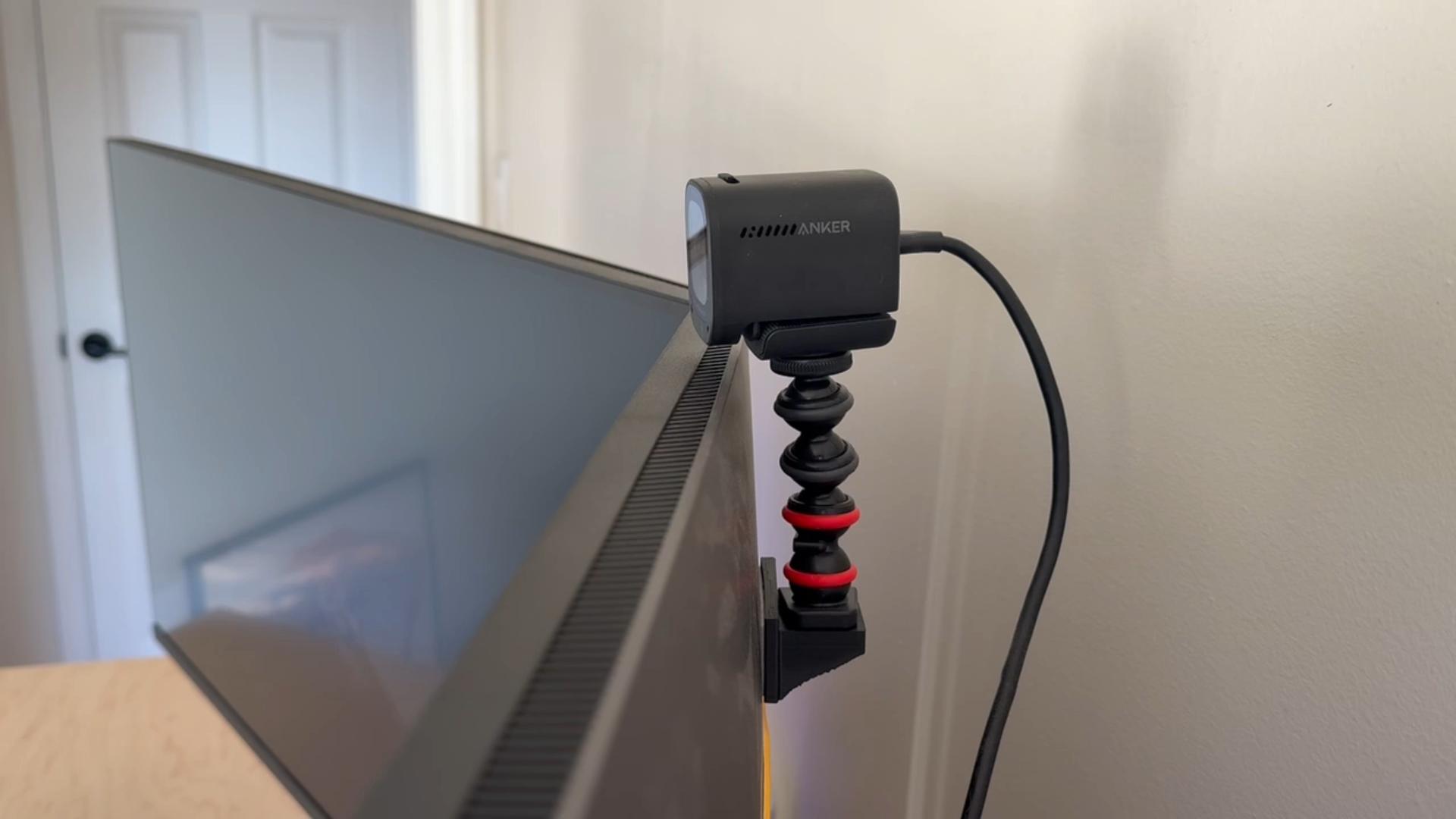

A custom removable mount for a Gorilla Pod arm. See more details on the Thingiverse page.

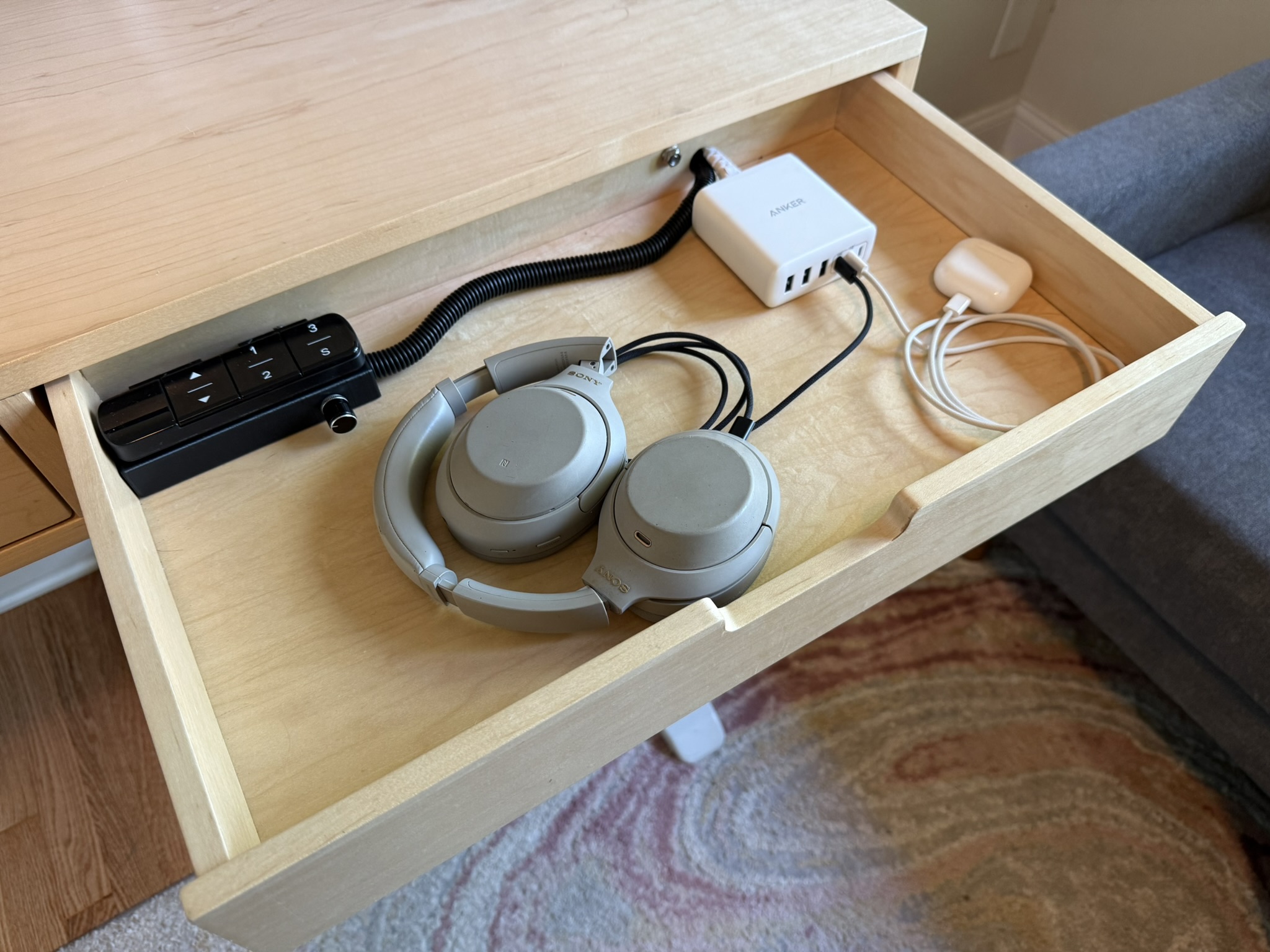

The charging drawer.

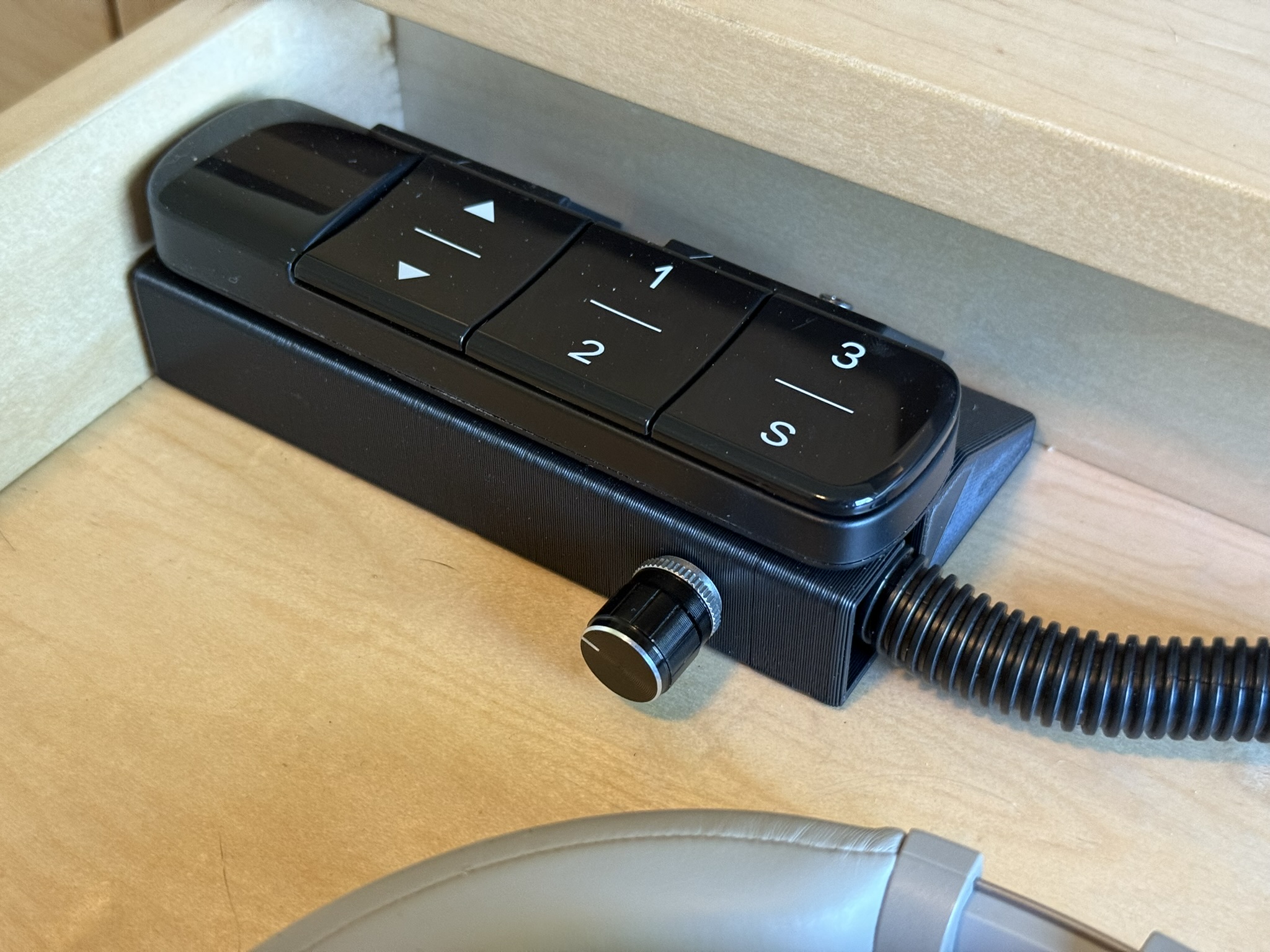

The height controller and backlight dimmer are in a custom enclosure. See more details on the Thingiverse page.

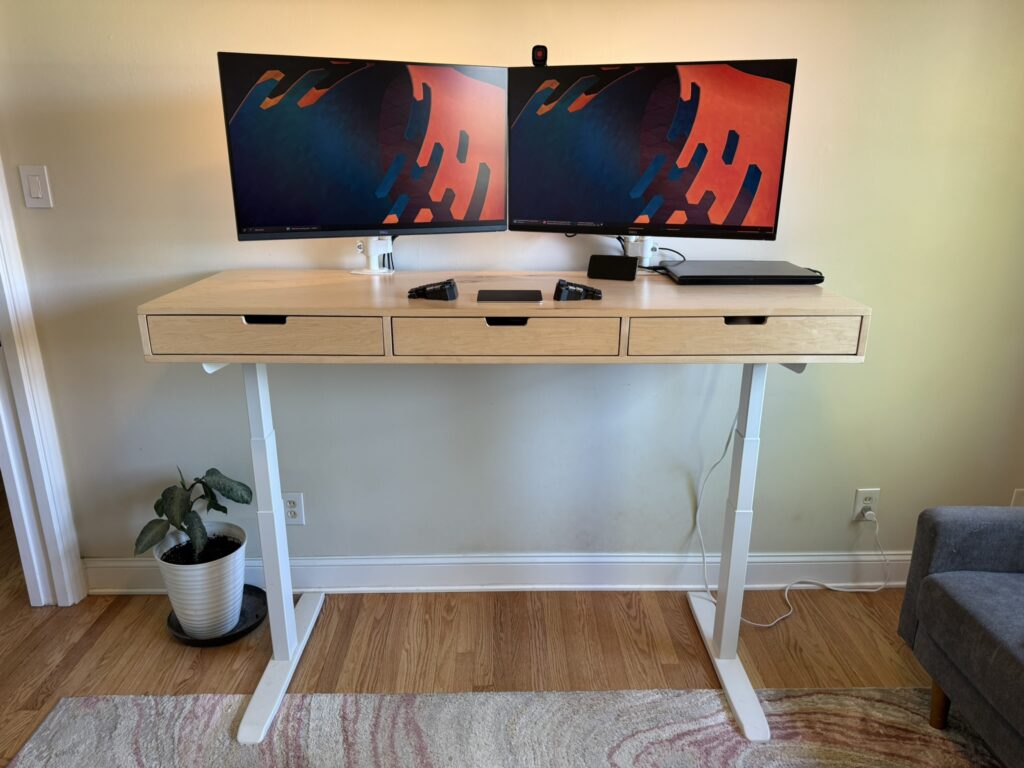

I’m very happy with the final result!

Video

https://youtu.be/kmaVLJA67Oc

Drawings and cutlist

The drawings and cutlist below are available as a PDF. Additionally, Solidworks parts, drawings, and assemblies are available as a zip file.

standing-desk-solidworks (google drive)
